Hardware build and capability reference

Current design contract: 2026-09-22. The physical calculator and bitmap emulator use 132×65 pixels: nine 132-byte pages, 1,188 bytes, with one visible row in the final page. Module/controller identification and physical edge visibility still require verification against the installed specimen and BOM.

Current CAD kit

The active source family is chassis_award, top_cap_award, unified_faceplate_award and tpu_membrane_award. The suffix is a CAD identifier, not an award or manufacturing qualification. The top cap defaults to snap retention. Screw/nut variants, separate faceplates, circular Test-9 fixtures and experimental covers/stands are not interchangeable current-kit instructions.

From the source checkout	Output under scratch/stl
`make -C Hardware chassis`	`chassis_award.stl`
`make -C Hardware top-cap`	`top_cap_award.stl`
`make -C Hardware unibody-faceplate`	`unified_faceplate_award.stl`
`make -C Hardware button-membrane`	`tpu_membrane_award.stl`

Download the current mechanical prototype

The public mechanical release contains the matching four STL files used by the present printed prototype: chassis, faceplate, TPU membrane, and snap-retained cap. It does not include electronics source, firmware source, CAD generators, manufacturing artwork, or a claim that the printed calculator is a completed powered device.

Download the current four-part mechanical STL set

Proof reel

Open or download the 24-second proof reel.

This 24-second reel uses the actual printed mechanical prototype, the shipping iPhone app, and the membrane, assembly, and stand simulations. It does not depict a powered physical calculator.

The matching PrusaSlicer 3MF reference projects are available in the Hackaday project Files area for people following the documented prototype print settings. Use the four STL files as a set; older print-in-place spring fixtures, separate faceplates, and alternate covers are exploration artifacts rather than substitute kit parts.

Assembly and service

Dry-fit the matching faceplate and membrane in the chassis rails, then fit the snap-retained cap. The current release is an unpowered mechanical prototype: its RP2350 board design is in fabrication and is not installed in the pictured specimen. Once the board arrives, the integration sequence will add board seating, display alignment, switch reach, connector clearance, battery polarity, and power checks. Release the retention features rather than prying on the display surround when reopening the printed assembly.

Material, Color & Faceplate Specification

[!IMPORTANT] Enclosure Color Clarification: Physical calculator enclosures are never white. All physical StackCalc production handhelds (SC-32 and SC-6) are molded and printed in dark, technical, high-rigidity thermoplastics (Sunlu Midnight Navy PLA 2.0+, Technical Matte Black PLA/PETG, Elegoo Space Gray PLA, Sunlu Dark Chestnut PLA, and Sunlu Coffee Brown PLA).

Single-color Sunlu White PLA 2.0+ (#F5F5F3) is utilized exclusively for classroom tactile manipulatives (Fraction Studio proportional blocks, Ten-Frame two-color tokens, Math Dominoes tiles), and as an in-app virtual software theme ("RetroFuturism", marked isVirtual: true). On physical calculators, "white" appears solely as high-contrast subsurface micro-foamed legends nucleated by 1064nm pulsed infrared laser exposure.

Physical Production Hardware Twins (8 CMF Editions)

All physical production calculators feature custom Tactile Light Gray TPU 95A (#94999E) keycaps (or Cobalt Azure / Black TPU) with recessed laser-ablated legends and direct laser micro-foamed markings:

Edition Name	Chassis Base Material	Faceplate Material & Finish	Keycap Material	Laser Marking & Foaming	Optical Contrast
Cosmos (Champion)	Sunlu Midnight Navy PLA 2.0+ (`#28334A`)	Sunlu Midnight Navy PLA 2.0+	Light Gray TPU 95A (`#94999E`)	1064nm IR Stark White Micro-Foam (`#FFFFFF`)	15.2:1 AAA
Stealth Industrial	Technical Black PETG (`#101114`)	Matte Black PLA 2.0+ (Archimedean Chords)	Cobalt Azure TPU 95A (`#028CE3`)	Carbon Black Key Legends + Silver & Gold Foil	>5.3:1 AA
Grayscale (IR Foamed)	Technical Matte Black PLA (`#101114`)	Technical Matte Black PLA 2.0+	Light Gray TPU 95A (`#94999E`)	1064nm IR Clean White Micro-Foam	12.8:1 AAA
Voyager	Sunlu Midnight Navy PLA 2.0+ (`#28334A`)	Elegoo Space Gray PLA (`#4B4E54`)	Light Gray TPU 95A (`#94999E`)	1064nm IR Chalk White Foam + Gold/Cyan Shifts	12.4:1 AAA
Avionics Slate Gray	Elegoo Space Gray PLA (`#4B4E54`)	Elegoo Space Gray PLA (`#4B4E54`)	Light Gray TPU 95A (`#94999E`)	1064nm IR Chalk White Foam + Amber/Cyan	12.4:1 AAA
Heritage Pioneer	Sunlu Dark Chestnut PLA (`#3B1F17`)	Sunlu Dark Chestnut PLA (`#3B1F17`)	Light Gray TPU 95A (`#94999E`)	1064nm IR Antique Cream Foam (`#F5F0E6`)	10.8:1 AAA
Earth-Tone (Espresso)	Sunlu Coffee Brown PLA (`#4A2E1B`)	Sunlu Coffee Brown PLA (`#4A2E1B`)	Light Gray TPU 95A (`#94999E`)	1064nm IR Warm Chalk Foam (`#F8F6F0`)	13.0:1 AAA
Synthwave (Signature)	Technical Black PLA (`#101114`)	Purple+Black Dual Silk PLA (`#695CC7`)	Light Gray TPU 95A (`#94999E`)	1064nm IR Silver-Frost Foam (`#E8EAF0`)	7.5:1 AA
Pure Black	Black PETG (`#101114`)	Technical Black PLA 2.0+	Black TPU (`#18181A`)	1064nm IR Stark White Micro-Foam	14.2:1 AAA

In-App Heritage Software Themes (Virtual Only)

These digital twin themes celebrate historical calculator designs within the iOS and iPadOS companion applications: * RetroFuturism (Virtual Only): Dieter Rams / 1980s Braun aerospace cream (#F5F5F3) with deep navy markings (#142240) and antique bronze accents (#784408). * Pioneer Brown (Virtual Only): 1988 Corvallis HP-32SII tribute in matte brown (#2E241C) with golden amber and cyan pad-printed legends. * Pioneer Black (Virtual Only): 1990s updated Pioneer release in deep matte black (#1F1F21) with emerald green and orchid purple legends.

Primary and secondary buttons share the same material. Button trenches are laser engraved and faceplate labels use 1064nm pulsed infrared laser foaming. Software colors communicate appearance; exact physical matches and abrasion resistance require specimen measurement. Orange/blue functional coding belongs exclusively to the fixed watch interface, including watch widgets. Filament base colors and manufacturing layer colors are separate.

CAD illustrations and optional accessories

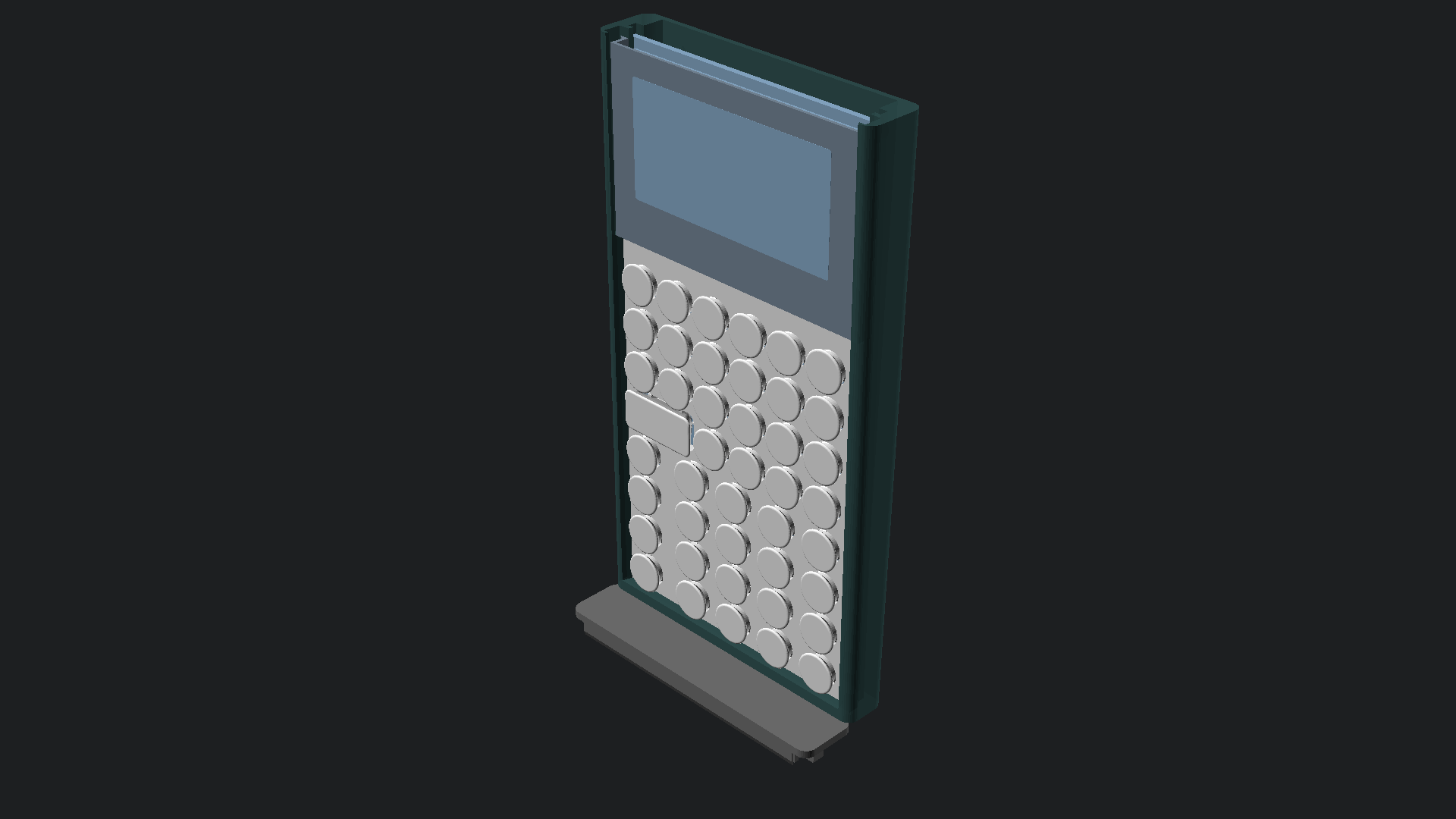

Current assembly CAD illustration

These images are CAD illustrations, not photographs of a qualified specimen. Compare their exact source configuration with the selected kit before assembly. Optional stands and covers have separate source configurations and are not validated kit contents or protection claims.

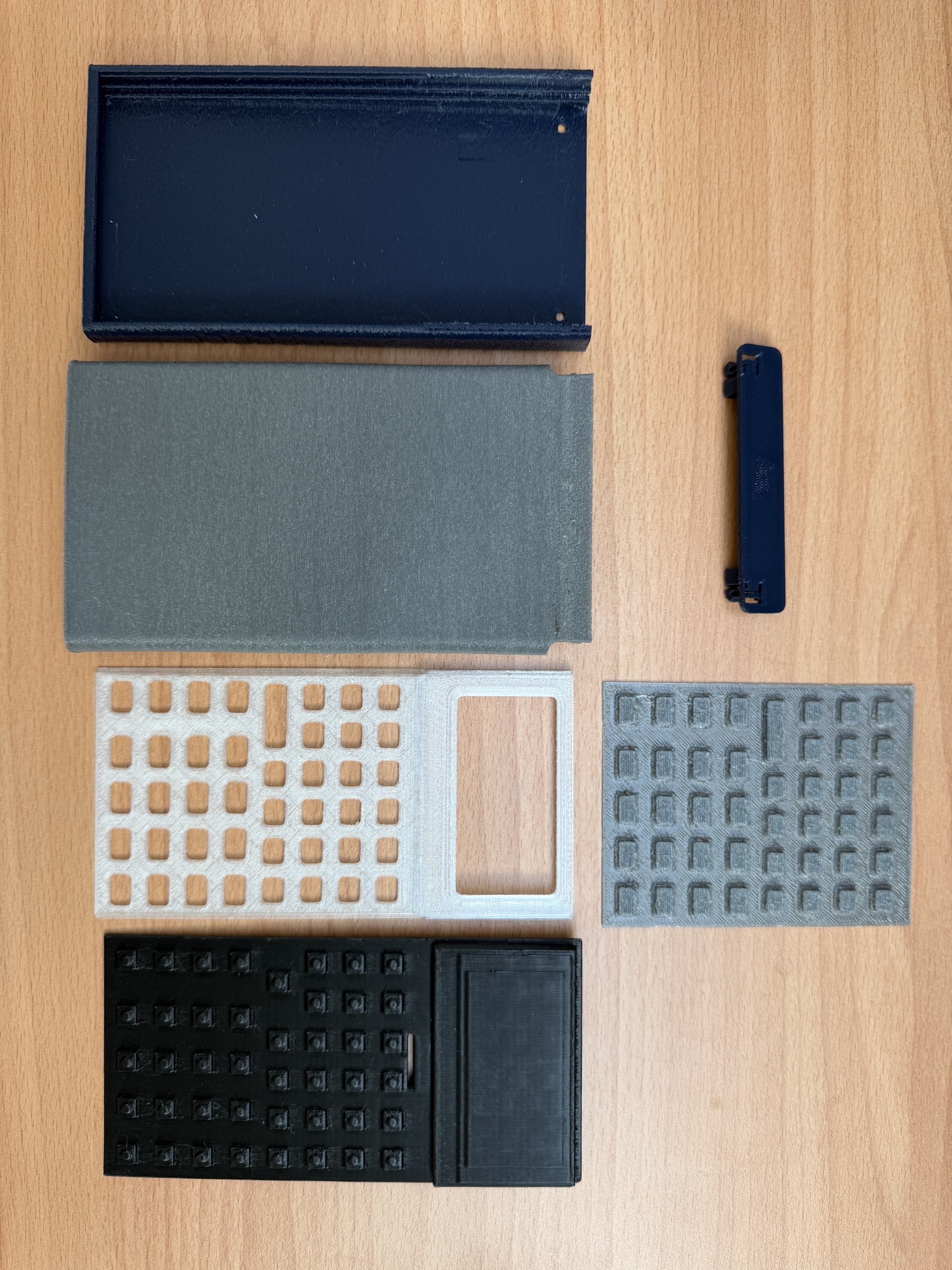

Current printed StackCalc parts laid out for assembly

Current 3D-printed mechanical parts prepared for fit and assembly exploration. The RP2350 calculator PCB design is complete and fabrication is in progress; no assembled, powered StackCalc board is on the bench yet.

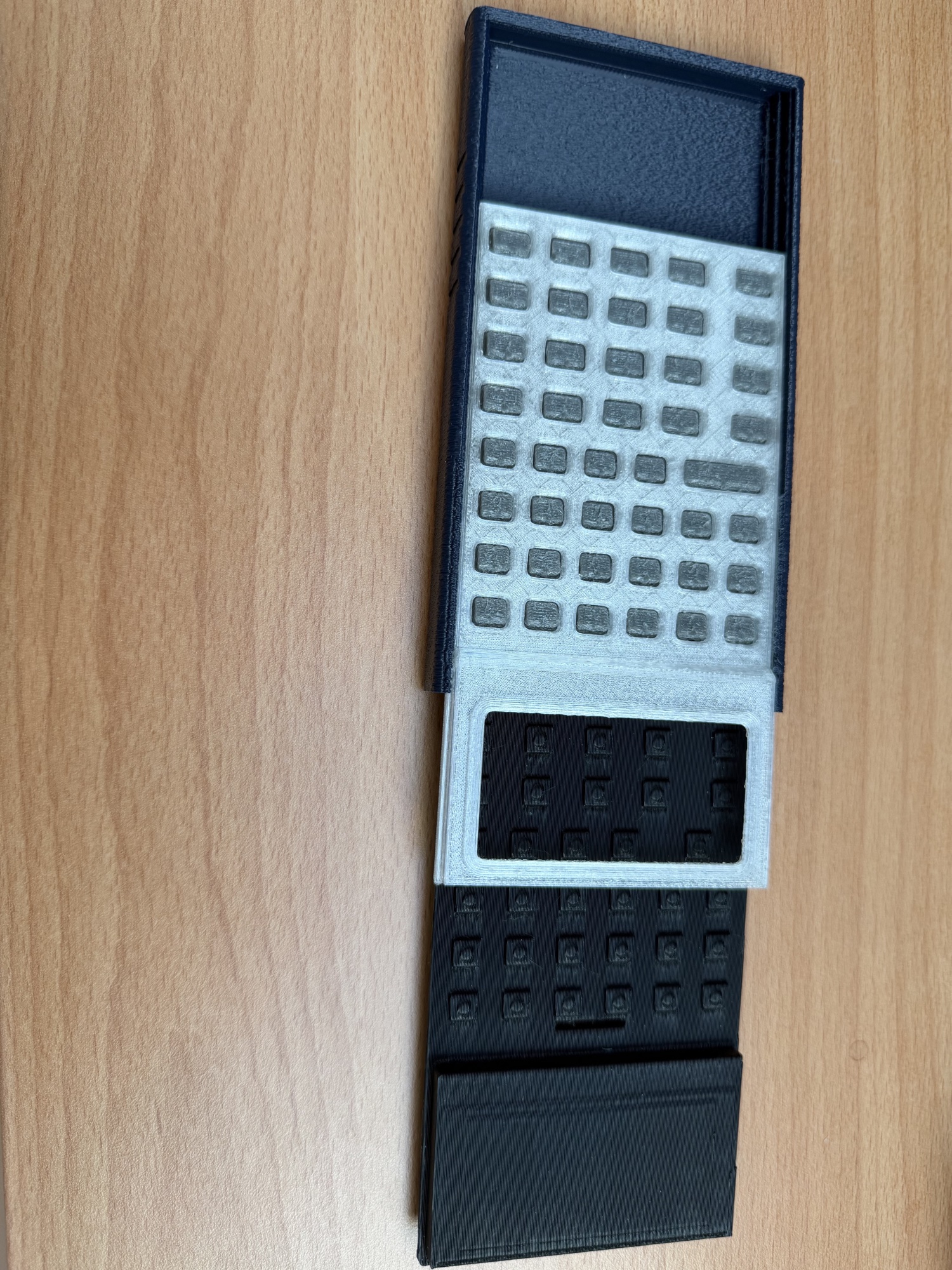

Current printed StackCalc prototype with the assembly open

The current tool-free mechanical assembly in progress. Physical retention, key force, and service claims remain to be measured on the matching final build.

Print-in-place spring exploration

Before selecting the current TPU membrane direction, we printed integrated spring and key experiments to study travel, return behavior, and print tolerance in a single part. These experiments informed the mechanical layout, but they are not the current keypad design or a validation of final key force.

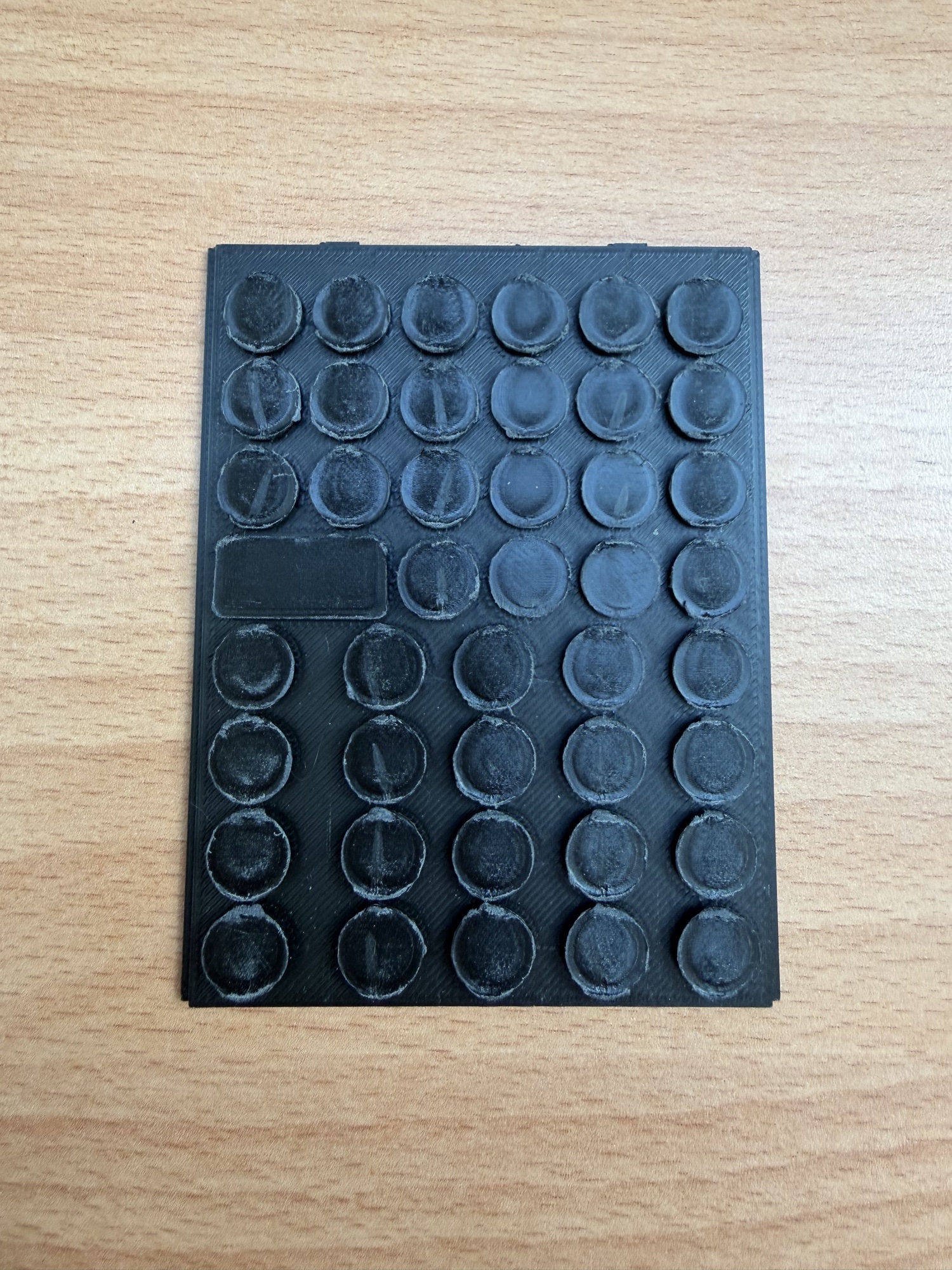

Print-in-place spring keypad experiment

A printed test array with integrated circular key and spring features. It records an exploratory route that was superseded by the current TPU membrane direction.

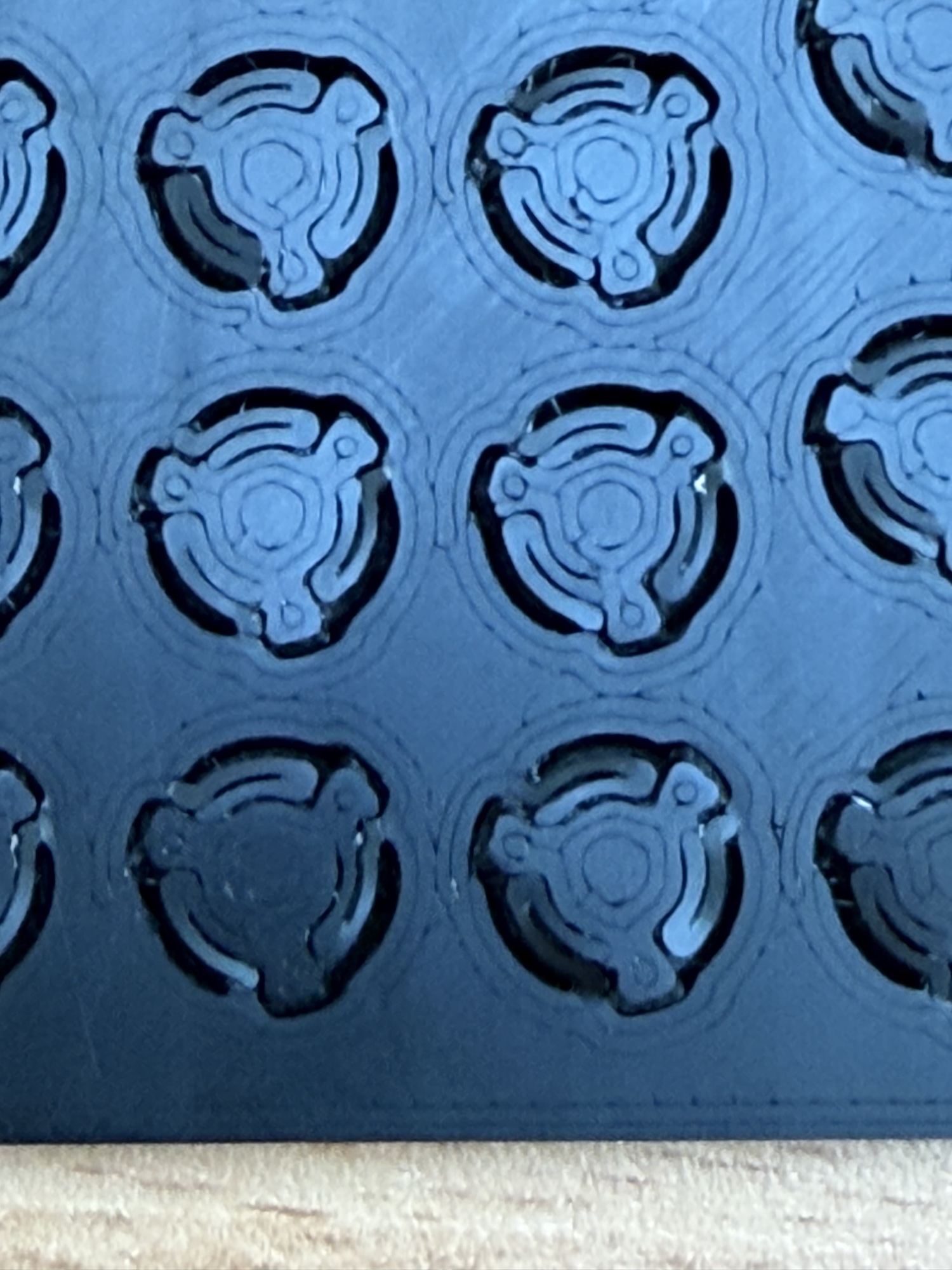

Close view of print-in-place spring features

Close view of the printed spring geometry. The current design work uses a separate TPU membrane; repeatable force, life, and tactile measurements remain future test work.

2. Classic Scientific RPN Parity & Modern Capability Rubric

This rubric tracks operational capabilities across all StackCalc surfaces compared against classic scientific RPN handheld baselines. Capabilities below are implementation references; release claims require platform-specific regression and device evidence.

Core Arithmetic & RPN Stack Operations

Capability / Key	Classic RPN Baseline	Physical Hardware (SC-32)	iOS App	watchOS App	Notes & Operational Details
Basic Arithmetic (`+`, `-`, `×`, `÷`)	✅	✅	✅	✅	Standard two-operand evaluation; drops Y onto X
Stack Commit (`ENTER`)	✅	✅	✅	✅	Copies X into Y and arms automatic stack lift
Sign Toggle (`+/-`)	✅	✅	✅	✅	Negates mantissa or active exponent
Absolute Value (`\\|x\\|` / `ABS`)	✅	✅	✅	✅	Promoted to Right Shift `+/-` for direct one-touch access
Integer Remainder Division (`÷R`)	✅	✅	✅	✅	Returns integer quotient and pushes remainder
Scientific Notation (`E`)	✅	✅	✅	✅	Initiates base-10 exponent entry (`1.23E4`)
Register Swap (`𝑥≷𝑦`)	✅	✅	✅	✅	Exchanges values in X and Y registers
Stack Roll Down (`R↓`)	✅	✅	✅	✅	Rotates four-level stack: X→T, Y→X, Z→Y, T→Z
Stack Roll Up (`R↑`)	✅	✅	✅	✅	Rotates four-level stack in reverse direction
Last Argument Recovery (`LAST𝑥`)	✅	✅	✅	✅	Restores previous X operand before last operation
Full Precision View (`SHOW`)	✅	✅	✅	✅	Temporarily reveals full 15-digit internal IEEE-754 value
Backspace / Clear (`<-`, `C`)	✅	✅	✅	✅	Deletes single digits during entry; clears active menu or line

Scientific & Transcendental Functions

Capability / Key	Classic RPN Baseline	Physical Hardware (SC-32)	iOS App	watchOS App	Notes & Operational Details
Square Root (`√𝑥`)	✅	✅	✅	✅	Evaluates \(\sqrt{x}\); supports negative arguments in complex mode
Square (`𝑥²`)	✅	✅	✅	✅	Evaluates \(x^2\) onto active stack
Natural Logarithm (`LN`)	✅	✅	✅	✅	Evaluates \(\ln(x)\) base-\(e\)
Common Logarithm (`LOG`)	✅	✅	✅	✅	Evaluates \(\log_{10}(x)\) base-10
Natural Exponential (`𝑒ˣ`)	✅	✅	✅	✅	Evaluates \(e^x\)
Base-10 Exponential (`10ˣ`)	✅	✅	✅	✅	Evaluates \(10^x\)
Power (`𝑦ˣ`)	✅	✅	✅	✅	Combines Y and X to evaluate \(y^x\)
Arbitrary Root (`ˣ√𝑦`)	✅	✅	✅	✅	Evaluates \(\sqrt[x]{y}\)
Reciprocal (`¹/𝑥`)	✅	✅	✅	✅	Evaluates \(1/x\)
Factorial / Gamma (`𝑥!`)	✅	✅	✅	✅	Computes \(n!\) for integers and \(\Gamma(x+1)\) for non-integers
Trigonometry (`SIN`, `COS`, `TAN`)	✅	✅	✅	✅	Evaluates sine, cosine, tangent in current angular mode
Inverse Trig (`ASIN`, `ACOS`, `ATAN`)	✅	✅	✅	✅	Evaluates arcsine, arccosine, and arctangent
Hyperbolic Modes (`HYP`)	✅	✅	✅	✅	Arms hyperbolic trig: \(\sinh, \cosh, \tanh, \text{asinh}\), etc.
Constant Pi (`π`)	✅	✅	✅	✅	Enters \(\pi = 3.141592653589793...\) onto stack

Complex Numbers (\(a + bi\))

Capability / Key	Classic RPN Baseline	Physical Hardware (SC-32)	iOS App	watchOS App	Notes & Operational Details
Complex Pair Entry	✅	✅	✅	✅	Rectangular real and imaginary coordinate input via `CMPLX`
Euler's Identity Parity	✅	✅	✅	✅	Evaluates \(e^{\pi i} = -1.0000 + 0.0000i\) accurately
Complex Transcendentals	✅	✅	✅	✅	Full complex domain for roots, powers, logs, and trig
Polar / Rectangular Conversion	✅	✅	✅	✅	Instant transformation between \((r, \theta)\) and \((x, y)\)

Modern Fractions & Educational Mathematics

Capability / Key	Classic RPN Baseline	Physical Hardware (SC-32)	iOS App	watchOS App	Notes & Operational Details
Three-Part Fraction Entry	✅	✅	✅	✅	Formatted entry via `.Whole.Numerator.Denominator`
Manual Step-by-Step Reduction	❌	✅	✅	✅	`[SIMP]` softkey factors out common divisors iteratively
Fraction/Decimal Toggle (`[FDISP]`)	✅	✅	✅	✅	Instantly toggles display between exact fraction and decimal
Mixed Fraction Arithmetic	✅	✅	✅	✅	Direct addition, subtraction, multiplication of mixed numbers

Two-Variable Statistics & Curve Fitting

Capability / Key	Classic RPN Baseline	Physical Hardware (SC-32)	iOS App	watchOS App	Notes & Operational Details
Data Accumulation (`Σ+`)	✅	✅	✅	✅	Enters coordinate pair \((x, y)\) into dedicated stat registers
Data Deletion (`Σ-`)	✅	✅	✅	✅	Subtracts erroneous data point from active statistics
Sample & Population Means (`𝑥̄, 𝑦̄`)	✅	✅	✅	✅	Computes weighted arithmetic means of x and y
Standard Deviations (`s, σ`)	✅	✅	✅	✅	Computes sample (\(s\)) and population (\(\sigma\)) standard deviations
Linear Regression (`L.R.`)	✅	✅	✅	✅	Solves slope (\(m\)), y-intercept (\(b\)), and correlation (\(r\))
Summation Recall (`SUMS`)	✅	✅	✅	✅	Recalls accumulated \(\Sigma x, \Sigma y, \Sigma x^2, \Sigma y^2, \Sigma xy, n\)

Storage Registers & Program Variables

Capability / Key	Classic RPN Baseline	Physical Hardware (SC-32)	iOS App	watchOS App	Notes & Operational Details
Register Store & Recall (`STO`, `RCL`)	✅	✅	✅	✅	Stores/recalls values across 26 global lettered registers (A–Z)
Indirect Register Addressing	✅	✅	✅	✅	Uses register `(i)` as a pointer for dynamic indexed access
Register Arithmetic	✅	✅	✅	✅	In-place operations (`STO +`, `STO -`, `STO ×`, `STO ÷`)
Continuous Memory	✅	✅	✅	✅	Preserves all registers across power downs and sleep states

Advanced Numerical Solvers & Integration

Capability / Key	Classic RPN Baseline	Physical Hardware (SC-32)	iOS App	watchOS App	Notes & Operational Details
Single-Root Solver (`SOLVE`)	✅	✅	✅	✅	Numerical secant/Brent root-finder without algebraic CAS
Numerical Integration (`∫`)	✅	✅	✅	✅	Romberg / adaptive quadrature definite integral solver
Cubic Polynomial Solver (`POLY`)	❌	✅	✅	✅	Solves real and complex roots for \(Ax^3 + Bx^2 + Cx + D = 0\)
Time Value of Money (`TVM`)	❌	✅	✅	✅	Dedicated financial amortizer (\(N, I\%YR, PV, PMT, FV\))

Modern Interface & System Enhancements

Capability / Feature	Classic RPN Baseline	Physical Hardware (SC-32)	iOS App	watchOS App	Notes & Operational Details
Interactive TUI Tutorials	❌	✅	✅	✅	16 built-in step-by-step guided lessons with verification
Flexible Stack Architecture	❌	✅	✅	✅	Configurable classic 4-level, 8-level, or unbounded stack
Function Graphing (`PLOT`)	❌	✅	✅	✅	Basic plotting engine renders function curves and regression scatter data directly on graphic LCD and app interfaces
Continuous Tactile Field (HPTC)	❌	❌	✅	❌	Simulated mechanical travel via continuous CoreHaptics
Pitch-Black OLED Mode	❌	❌	❌	✅	True #000000 background optimized for Apple Watch displays

3. Deliberate Quality-of-Life Departures from Classic Handhelds

While maintaining functional pedigree, StackCalc incorporates deliberate modern enhancements to improve usability, durability, and educational clarity:

Unified RPN Programming:
Classic Handhelds: Required users to navigate between an archaic algebraic equation mode and keystroke programming.
StackCalc: Unifies all equation definition into deterministic RPN stack operations. This eliminates parser ambiguities and ensures identical execution behavior on microcontrollers, phones, and watches.
Dedicated Absolute Value (|x|) Key:
Classic Handhelds: Hid the absolute value function deep within secondary menus.
StackCalc: Assigns |x| directly to Right Shift +/-, providing instant one-touch evaluation.
Modern Remainder Notation (÷R):
Classic Handhelds: Labeled integer division ambiguously as INT÷.
StackCalc: Uses ÷R to clearly communicate integer division with remainder, aligning with modern engineering and educational standards.
Integrated Basic Plotting Engine (PLOT):
Classic Handhelds: Required bulky peripheral thermal printers or external plotters to visualize data.
StackCalc: Built-in plotting engine renders function evaluation curves (\(y = f(x)\)) and statistical scatter/regression plots directly on the transflective graphic LCD display and mobile screens.
Clean Power Architecture (Software Targets):
Classic Handhelds: Included a physical OFF key label.
StackCalc: Retains power management on the hardware unit, but hides unnecessary power buttons on iOS and watchOS where operating system lifecycle handlers manage state.
Configurable Stack Depth:
Classic Handhelds: Restricted permanently to a 4-level stack (\(X, Y, Z, T\)).
StackCalc: The FLAGS menu allows selecting between classic 4-level, 8-level, and unbounded Infinite stack depths.
